SeaStar Compact Universal Base-Mount Outboard Hydraulic Steering

Compact, durable, and reliable

The SeaStar Compact Universal Base-Mount Outboard Hydraulic
Steering features an ultra sleek cylinder design that
requires less space around the engine and improves the appearance
of your boat. Cylinder remains stationary, eliminating the chafing
and wear of hoses associated with other systems. Accepts port or
starboard hose connections. Entire system is designed for fast and
easy installation.

Neatly mounts to all V4 and V6 Engines without using the Tilt
Tube.

Easily installs on motors 75HP and up. Mercury/Mariner, Evinrude &
Johnson, Suzuki, Yamaha and Honda-Force.

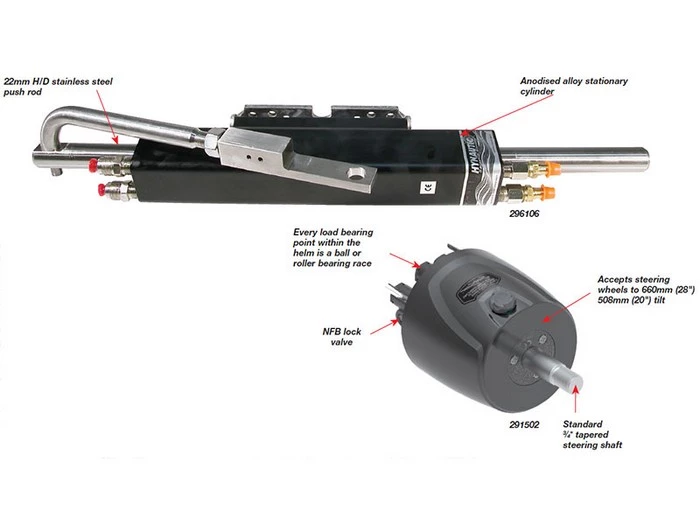

296004 Kit Inclusions:

• 1 x 296106 Cylinder – universal base mount
• 1 x 291502 Helm – Seastar 1.7 front mount
• 2 x 293614 Connector fitting 3⁄8″ tube – ¼” NPT
• 1 x 292997 Hose – nylon semi rigid 3⁄8″ – 15m
• 3 x 291902 946ml SeaStar Solutions oil
