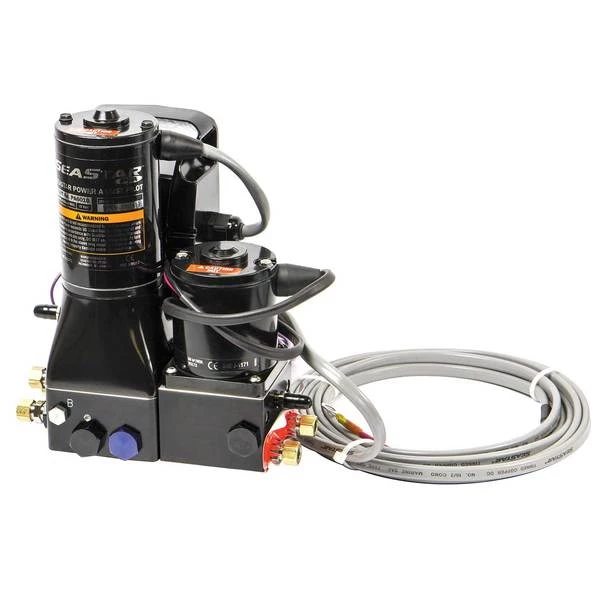

SeaStar P/Apower Assist Steering Type 1 12V Autopilot Pump

Converts manual hydraulic steering for dramatic reduction in
steering wheel torque and at the same time provides a pump for an
autopilot installation.

The SeaStar Power Assist Autopilot pump is the standard power
assist product with the addition of a Type 1 autopilot pump. The
SeaStar Autopilot pump is a fixed flow, reversible pump set that
uses an internal hydraulic gear pump, producing very little
vibration or noise.


Features:

• Autopilot ready – a single installation (i.e. no need to break
  into system for install of pump)
• Converts manual hydraulic steering to power steering
• Dramatic reduction in steering wheel torque
• Easy installation
• OEM or Retrofit
• Simple add on to an existing SeaStar manual system (from 1.4 –
  2.4 SeaStar helm pumps)
• Compatible with power purge system
• Ignition protected (SAE J-1171)
• ABYC, CE, NMMA, ISO 10592 Approved
• Replaces other 12 and 24 volt systems

Wire Details

Length: 24′
Gauge: #12 AWG
Connector: None – Bare Leads
Oil Compatibility: SeaStar Steering Fluid (MIL
5606)
Weight: 4.9 lb.

Autopilot Pump Sizes

Type 1: 60 cu. in./min (no-load)
Maximum Pressure: 1000 psi
Typical Current Draw 12V Type 1: 4 – 8 amps (Depending on
Application)

Autopilot Pump Cylinder Capacity
Type 1 4.9-12.5 cu. in.


Specifications:

Name	Value
Application	Autopilot Mechanical Steering Conversion
Mount Type	Included
Type	Steering Pumps
Warranty Details	Two Years Limited
