SeaStar Solutions Transom Support Mounting Kit

For older model outboards without tilt tubes

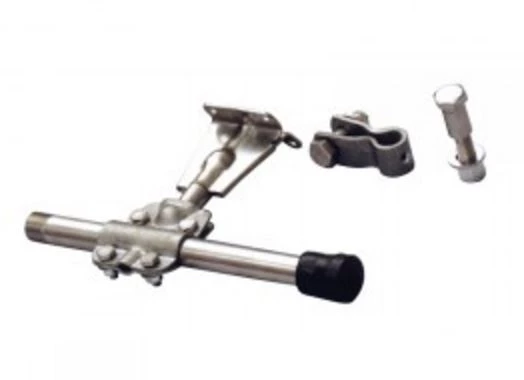

The SeaStar Solutions Transom Support Mounting Kit
is a universal mount for most outboard engine steering
applications. This cable connections is used for older model
outboards without tilt tubes, low Hp outboards or installations
where transom design interferes with standard tilt tube mounting.
Supplied with grease wipe end boot.

SeaStar Solutions Transom Support Mounting Kit
Specifications:

Clamp Block Outboard – Stainless Steel

• Part number: older model outboards without tilt tubes
• White powder coated pressed metal plates
• 146mm outside diameter mount plate
• 7⁄8″ (23mm) x 268mm threaded alloy tube; one end accepts
  steering cable mount nut
• Supplied with six 38mm x 6mm mount fastenings and grease wipe
  end boot

Support Tubes – Stainless Steel

• Part number: 280532
• Used in conjunction with clamp blocks
• Dimensions: 7⁄8″ (23mm) x 268mm tube
• One end is threaded to accept steering cable mount nut
• Supplied with grease wipe end boot

Standard Clevis Kit

• Part number: 280552
• 45mm Bolt Length
• Required for end of cable to motor connection
• Pressed stainless steel plate

Kit Includes:

• Stainless Steel Clamp Block Outboard
• Support Tubes
• Standard Clevis Kit
