SeaStar Thru Bulkhead Steering Hose – Outboard 3-17ft

Neat, professional installation

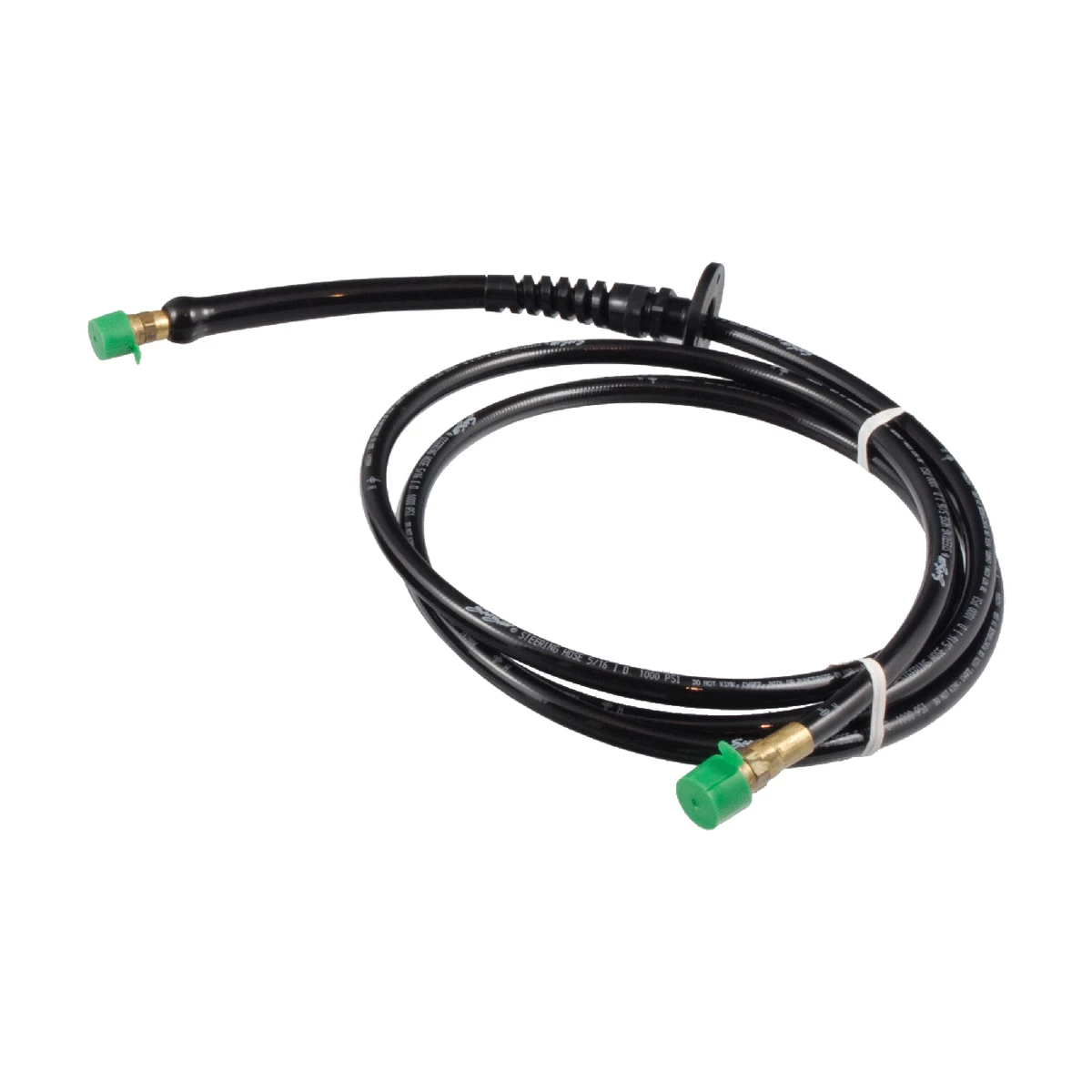

The SeaStar Thru Bulkhead Steering Hose is a
ready-made quick fit hydraulic hose with thru bulkhead fittings
installed. It suits SeaStar outboard, sterndrive and inboard
applications. It’s designed to provides professional finish to
hydraulic installations, as well as providing kink and abrasion
protection to the hose where it passes through the splash well (or
bulkhead) on the boat. Supplied complete with two brass swaged
fittings (3⁄8″ tube thread), thru bulkhead fitting as well as
rubber boots to prevent hose kinking at the cylinder end. The
outboard hose has a 70 bar (1000psi) working pressure rating.

SeaStar Thru Bulkhead Steering Hose – Outboard
Features:

• Integral bulkhead fitting
• Kink and abrasion resistant
• Suits SeaStar outboard, sterndrive and inboard
  applications
• Supplied complete with two brass swaged fittings (3⁄8″ tube
  thread), thru bulkhead fitting as well as rubber boots to prevent
  hose kinking at the cylinder end
• 70 bar (1000psi) working pressure rating
• Available lengths: 3 to 17ft

Installation Instructions:

• Determine desired area where the hoses will exit the transom.
  DO NOT mount below the waterline of the boat as this is NOT a fluid
  tight fitting.
• Drill two 1″ holes through the outside (the engine side) of the
  splashwell, inside along the gunwhale or through PVC tubing, under
  the deck to the helm pump. Note that the bend restrictor is to be
  installed onto the steering cylinder. DO NOT remove the protective
  end caps until connection to the cylinder and the helm pump are
  ready to be made.
• Secure bulkhead mounting plate to the splashwell of the boat
  using 3 of #10 screws (not supplied).
• Thread the pigtail fitting onto the bulkhead mount plate and
  torque to 20 in-lb.
• Secure Hydraulic hose to the steering cylinder and slide the
  bend restrictor over the swage fitting.

Note: DO NOT cut SeaStar Outboard hoses. Product is sold individually.
