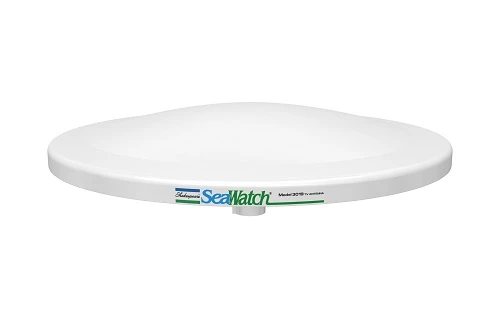

Shakespeare Marine 3019 SeaWatch HDTV Antenna 19in

The Shakespeare® SeaWatch® series of TV antennas are
Omni-directional over-the-air digital HDTV solutions that bring
sleek lines and 360 degrees high-performance coverage to your
watercraft. Designed to accept common 1in-14 threaded mounts, the
antennas are well suited to fit virtually any application.
Everything needed to connect the antenna to your converter or
television is in the box. When paired with an optional 2-way band
separator between the antenna and the amplifier, these antennas can
also receive AM/FM radio signals. A full line of mounts and
extension masts are available to fine-tune the installation.

The 3019 antenna is designed for the mobile lifestyle and can be
used on marine vessels, RVs, pop-up campers and more! Watch your
favorite sports, sitcoms, reality TV, crime dramas, local news,
weather, kids programming and more for FREE and in 1080 HD!

Shakespeare 3019 Marine HDTV/FM
Antenna19” Omni-directional

• Low noise amplifier
• Omni-directional
• Recieves ALL local HD broadcast signals
• AC, DC

Specifications:

Frequency Range	VHF:47-230MHz;UHF: 470-862MHz
Receiving Range	FM/VHF/UHF
Gain	30dB
Noise figure	3dB
Max. output level	110dBµV
Impedance	75 ohm
Connector	F-type
Input Voltage	DC12c, AC 110V
Dimensions	19” x 3”

What’s in the Box:

• 3019 Panel TV Antenna
• 20’ RG-59 Coax Cable / F-connectors
• AC / DC power cords
