Shakespeare Marine 4357-S AM/FM/VHF Marine Band Separator

Eliminate the need for separate AM/FM antennas and
operate AM/FM and VHF radios at the same time without interfering
with VHF radio performance.

The Style 4357-S is a solid-state, passive device that filters
AM/FM signals from any VHF antenna, directing them to an AM/FM
radio. The Band Separator lets you use both signals at the same
time, without purchasing a separate AM/FM antenna. The device’s
pick off point is not in line with the power going to the VHF radio
and will not cause harm to the AM/FM radio when transmitting a VHF
signal.

The 4357-S is ideal for use with low-profile antennas such as
the Shakespeare Style 5215 Squatty Body and Shakespeare Styles
5240-R and 5241-R.

Key Features

Features:

• Includes 10′ RG-62 coax with Motorola plug installed
• Also includes 3′ RG-58 cable for VHF transceiver
  connection
• PL-259 included, not installed for easy passage of cable
  through bulkheads

What’s in the Box

Features:

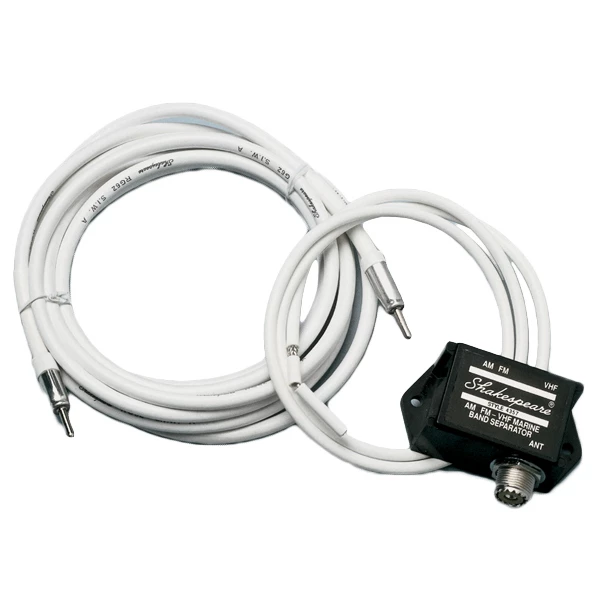

• Band Separator Unit
• PL-259 Connector
• RG-62 Cable, 10′, with Motorola type plugs installed

Specifications:

Name	Value
Type	Splitters
