Stemming from the popularity of the quick connecting feature on
Shakespeare’s high-end Phase III® marine antennas, the new
QuickConnect™ product line brings you the ease of connecting and
disconnecting your marine antenna in a series of entry-level
antennas.
Must use Quick Connect Series

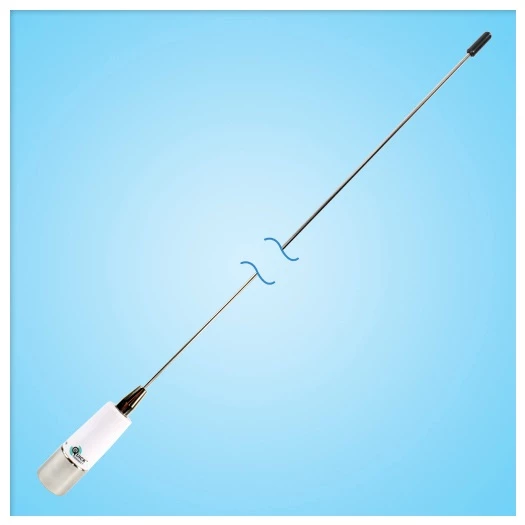

MountsShakespeare Quick Connect 3′ Stainless Steel
VHF Whip
- ?QuickConnect™ system, screw or unscrew antenna to disconnect
or connect - ?High quality connection so that no noise is generated due to
vibrations - ?Splash protection cap to protect the connector on the mount
when antenna is disconnected - ?Centerpin® PL-259 Connector is an easy crimp-on type
connector - ?Standard mount design to easily upgrade to a high-end
Shakespeare antenna without purchasing a new mount
Specifications:
| Band | Marine VHF |
|---|---|
| Antenna gain | 3db |
| Maximum input power | 50 watts |
| SWR | Nominally 1.3:1 at 156.8 MHz |
| Bandwidth | 5 MHz within 2.0:1 VSWR |
| Ferrule | Chrome-Plated Brass |
| Coax supplied | None |
| Connector supplied | None |
| Color/finish | Stainless Steel ship, White plastic body |
| Polarity | Vertical |
| Impedance | 50 Ohms (with QC Mount attached) |
| DC Ground | No DC Ground — The antenna will read open on continuity test. |
