Shakespeare Marine Shakespeare AS-2 Automatic Coaxial Switch

An innovative switch that toggles two radios to one
antenna

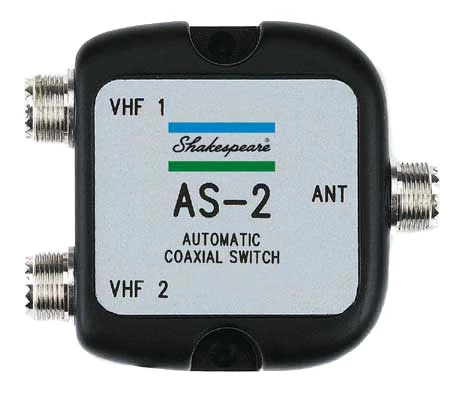

The Shakespeare AS-2 Automatic Coaxial Switch
mounts out of the way, you don’t have to get at it to use it. When
you key the microphone on one of the radios, it automatically
switches the antenna to it so the radio stays locked onto the
antenna until the automatic switch detects a transmit signal from
the other radio. It’s that easy!

Shakespeare AS-2 Automatic Coaxial Switch
Specifications:

• Frequency: Up to 600MHz
• VSWR: Below 1.2:1
• Power rating: 30W
• Impedance: 50ohms
• Insertion loss: Less than 1.2dB
• Isolation: Better than 150dB
• Connections: SO-239 type
• Power supply: 12vDC
• Sensing/Switching time: Less than 100ms (TBD)
• Construction: Cast aluminum case
