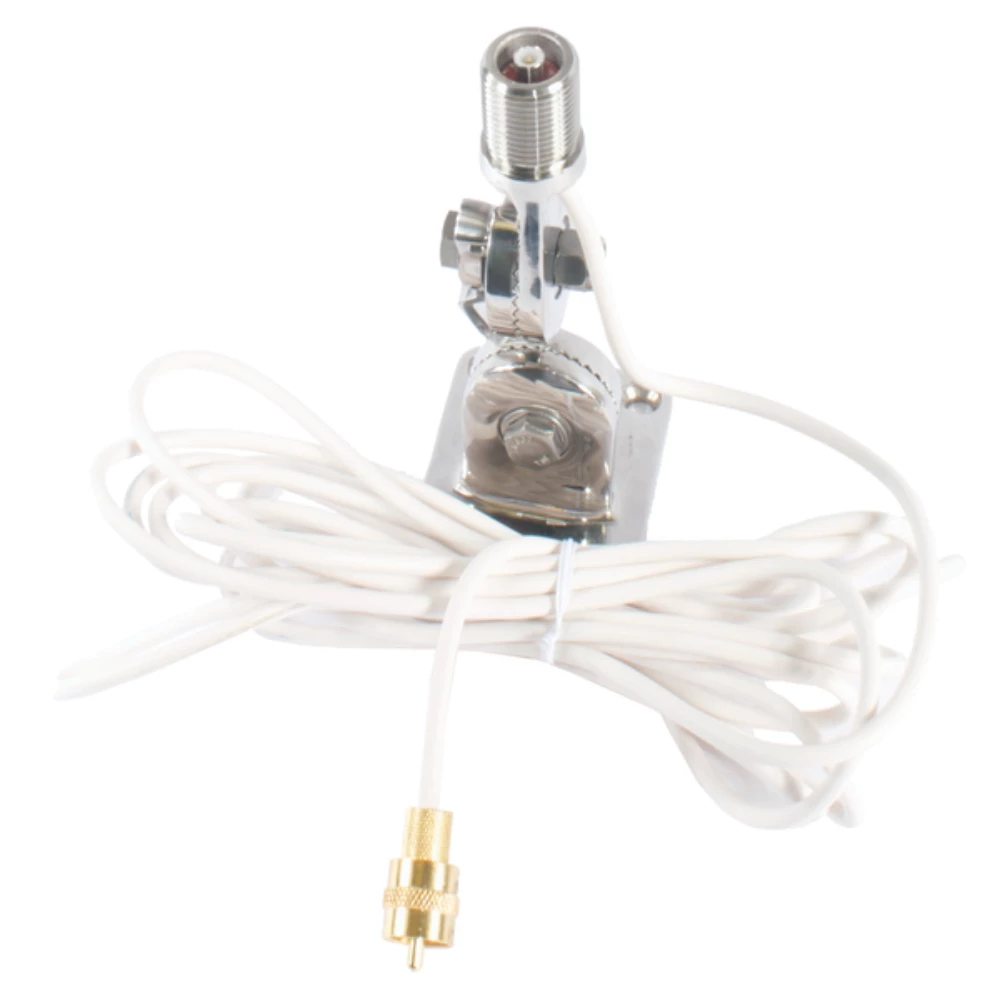

Shakespeare Marine Shakespeare QCM-S Quickconnect Stainless Steel Ratchet Mount

A new and cleaner way to connect your VHF
antenna with QuickConnect.

To make it easy and convenient to install, replace or stow away
your antenna, Shakespeare designed the QuickConnect antenna system
with cable attached to the mount instead of the antenna
itself.

Versatile four-way ratchet action and fast-release handle design
for quick and easy laydown. For deck or side mounting of
QuickConnect antennas.

Key Features

• QuickConnect: Unscrew or screw antenna to
  disconnect or connect
• High quality connection: No noise generated
  due to vibrations
• Splash protection cap: Protect the connector
  on the mount when antenna is disconnected
• Warranty: Two year limited warranty
• Centerpin PL-259 Connector: Easy crimp-on type
  connector
• Standard mount design: Upgrade to a high-end
  Shakespeare antenna without purchasing a new mount
• Thread: 1′-14
• Cable: 20′ of RG-58
• Bolt holes: 9/32 dia. (7.14mm), 3 x 1/2
  (76.2mm x 12.7mm) on center
• Stainless steel mount: Handles antennas up to
  8′
• Note: To be used with QuickConnect antennas
  only

Specifications:

Name	Value
Compatibility	QuickConnect Antennas
Dimensions	7′ Width x 3 1/2′ Height x 2′ Depth
Mounting Hardware	4 Screws (Sold Seperately)
Material	Stainless Steel
Mount Type	Quick Disconnect
Type	Ratchet Mounts
Warranty Details	Two Years
Weight	36.8 Ounces
