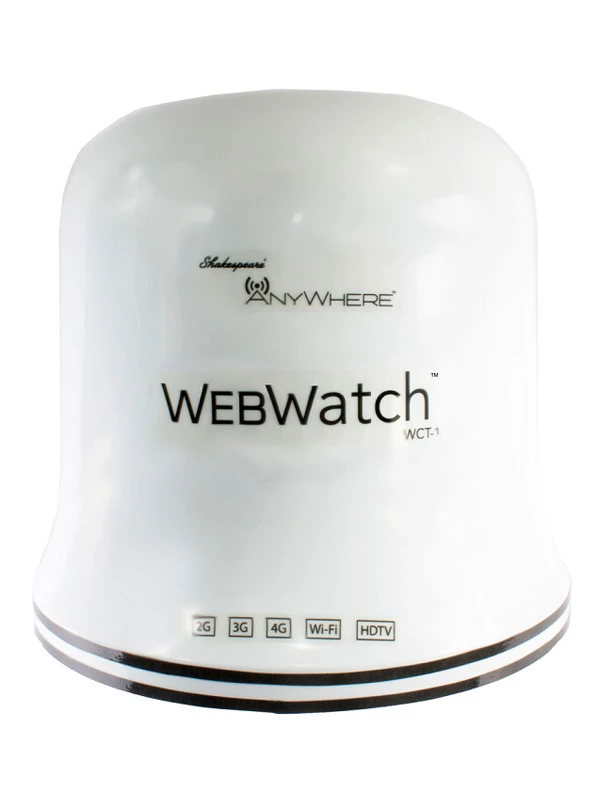

Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna

Web and watch on your boay, RV or anywhere else

Take your enterntainment wherever you go. The Shakespeare
Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna lets you
access the internet from a nearby Wi-Fi hotspot or cellular network
with up to 4G speeds and share it wirelessly through the built-in
hotspot or through Ethernet. The receiver auto-switches between
Wi-Fi signal and cellular data to maintain internet
connectivity.

Now, you don’t need another antenna for your TV. Access your
favourite local TV channels through the WebWatch’s built-in HDTV
receiver.

Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna
Features:

• Antenna diversity
• Auto switch between Wi-Fi and cellular
• iPhone and Android app browser management
• WiFi hotspot or Ethernet port network
• High performance CPU and SDRAM
• Single cable for power and TV

Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna
Specifications:

Technical

• Power Supply & Consumption: DC12V/24V, 1A Max @12 VDC
• Device Management: iPhone® app, Android™ app and web
  browser
• Internet access through: Wi-Fi hotspot or Ethernet
• Number of Users: Up to 32
• Connectors: 1 x Ethernet (LAN)
• Cables: 25ft (7.62m) RG-59 coax cable/power siamese cable, 25ft
  (7.62m) Ethernet cable
• Mounting: 1”-14 female thread*
• Dimensions: Dia. 11.75 in x 13 in (29.84cm x 33.02cm)
• Weight: 3.85lbs (1.74kg)
• RoHS Compliant: Yes
• Wireless Approvals & Certifications: FCC (Download manual for
  compliance information)

Wireless and Network

• Incoming: Long-range Wi-Fi® receiver, cellular data
• Outgoing: Thru built-in Wi-Fi® router or 1 x Ethernet
  cable
• Frequency: 2.4 GHz
• DC- HSPA+: 42Mbps download, 5.76Mbps upload
• Antennas: 2 x diversity (high performance)
• Other Network Features: Built-in firewall, dynamic DNS,
  integrated open VPN, IP Sec
• Port Speed: LAN – 10/100Mbps
• Gain: 2dB

Cellular Specifications

• Compatible Carriers:
  3G: AT&T, T-Mobile, Cricket (US), Spark (NZ)
  4G: AT&T
• SIM Card Type (not included): Data-only card, Standard size (15
  x 25mm)
• Bands:
  LTE (FDD): B2/B4/B55/B17 with diversity
  HSPA: DC-HSPA+/HSPA+/HSPA/WCDMA, B2/B4/B5 with diversity
• Speed:
  LTE 4G: Up to 100 Mbps download, 50 Mbps Upload (dependent on
  carrier)
  HSPA+ 3G: Up to 42 Mbps download, 5.76 Mbps Upload (dependent on
  carrier)
• Gain: 4dB

HDTV Specifications

• Receiving Range: VHF/UHF
• Frequency ranges: NTSC, ATSC (HDTV), T-DMB
• Antenna Gain: 28dB
• Max Output Level: 100dBμV Max
• Impedance: 75Ω
• Noise Figure: ≤4.5dB
• Compatibility: ATSC, HDTV

Note:

• Range may increase or decrease depending on factors like
  hotspot strength and obstacles in line of sight.

• Can not be mast mounted.

• Requires a data-only SIM card (not included in the
  package). Please check with your service provider beforehand to
  ensure they will support this platform and if it operates on the
  desired frequency range. Customer should check with network
  beforehand and ensure it operates on the desired frequency
  range.
